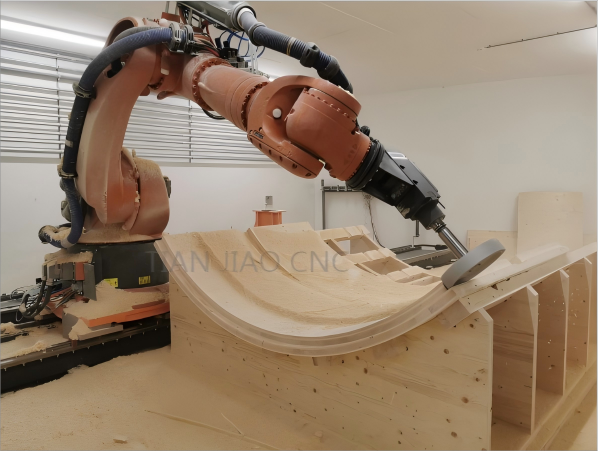

6 Axis Robot Arm Cnc Milling Engraving Router

This system is suitable for engraving work of various batches of workpieces in industrial production, suitable for cutting, grinding, drilling and other processing of workpieces, and product modeling of wood, stone, aluminum alloy and composite materials.



Product parameter：

Load (refers to the load of point at the foremost end of the 6th axis)
210kgs
Additional load on the arm
50kgs
Rated payload
260kgs
Maximum payload
275kgs
Weight
1077kgs
Motion axis
6
Pose repeatability (ISO 9283)
± 0.05 mm
Maximum reach
2700mm/3100
Protecton ratng (IEC 60529)
IP65
Protection ratng, in-line wrist (IEC 60529)
IP65/IP67
Sound level
< 75 dB (A)
Footprint
754 mm x 754 mm
Hole patern: mountng surface for kinematc
system
S780
Permissible angle of inclinaton
≤ 5 °
Flange (on the 6th axis)
DIN ISO 9409-1-A50
Controller
KRC4
Transformaton name
KR C4: KR210R2700_2 C4 FLR
During operaton
0 °C to 55 °C (273 K to 328 K)
During storage/transportaton
-40 °C to 60 °C (233 K to 333 K)
Installation position
On the ground
CPU and main board
KUKA
Spindle with water cooling systerm
18kw Italy spindle
Rotart table
1500kgs china made
Software
Sprutcam
DeviceNet
OMRON
RAILS
5M/6M/7M/12M/25M
